Dry-running vacuum pumps and dry-running compressors

Home  |  Systems and products / Vacuum pumps / Dry-running


Environmentally friendly, oil and lubricant-free technology

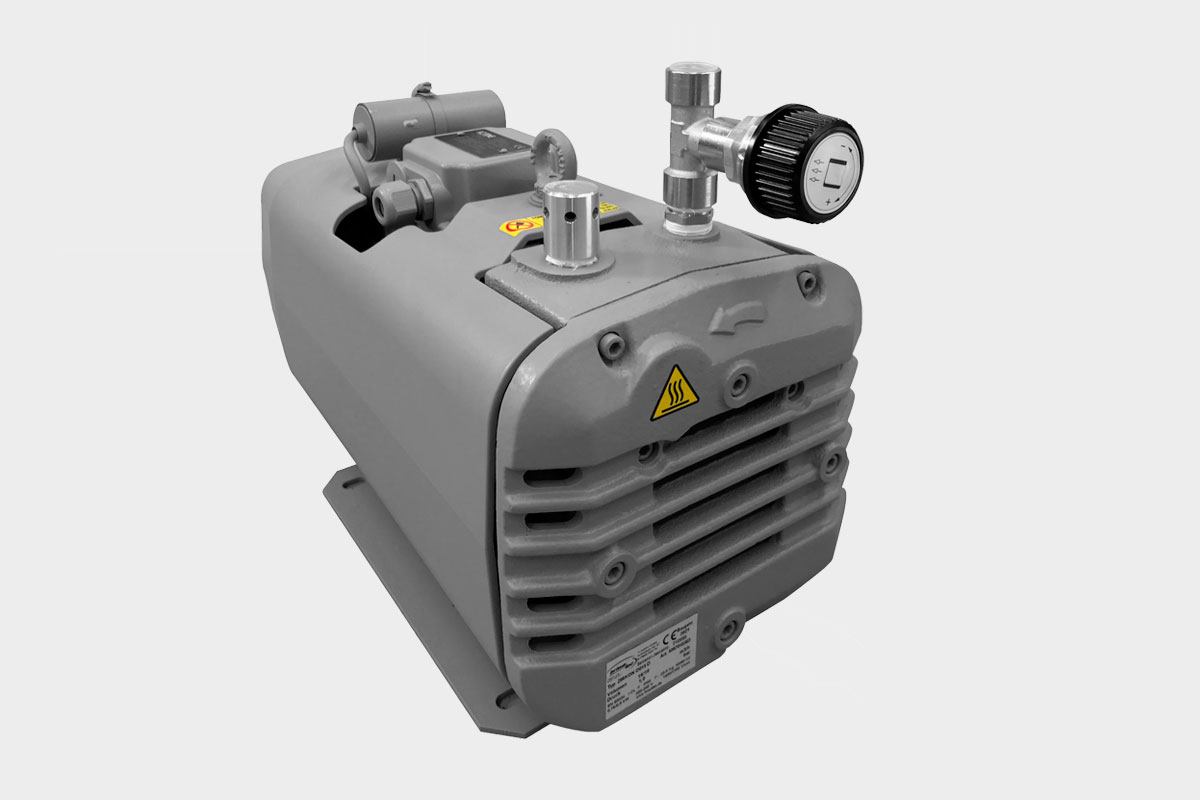

Our briwatec vacuum pumps and compressors (ZIRKON series) operate with environmentally friendly, oil- and lubricant-free rotary vane technology. The briwatec dry-running rotary vane vacuum pumps  and dry-running rotary vane compressors  are characterised by great durability and extremely economical operation. They are user-friendly, low-maintenance, efficient in drive and have very long vane service lives.



The rotary vane pumps and compressors in sizes from 3 to 40 m³/h and are designed with an overhung bearing. The sizes 60 to 140 m³/h are driven with coupled flange motors.

Compressor and drive are mounted on one shaft. This results in compact units that are ideal for difficult installations.


The vacuum pumps reach a final pressure of 120 mbar (abs.) in continuous operation. The compressors can be subjected to a pressure of up to 1.3 bar in continuous operation.

Further informationen and downloads

Data sheets, operating instructions and spare parts lists can be found in the downloads within our customer area.
